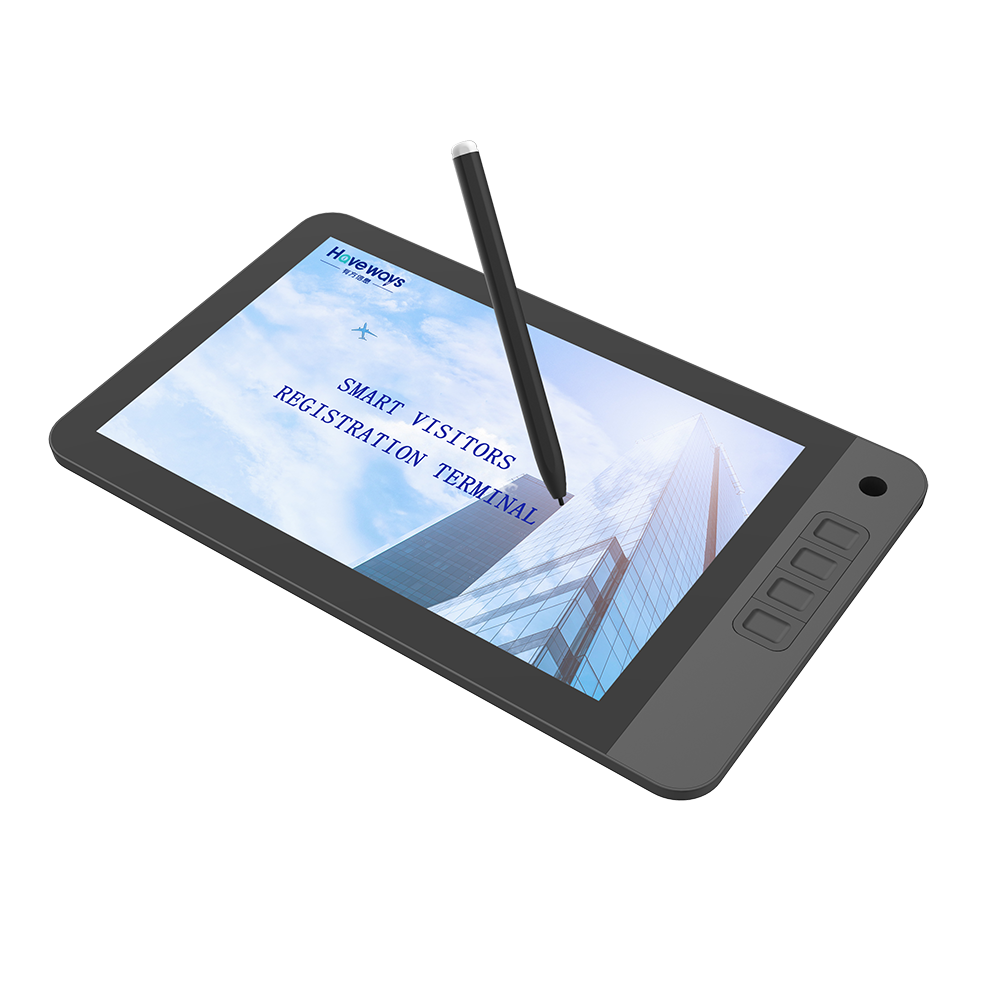

YHN 102
10-inch Signature pad
- 10.1" large display, 1280x800 resolution
- Comfortable signing experience
- Optional fingerprint sensor
- 8192 levels of pressure sensitivity
- Full Customization：Available in bespoke corporate colors and branding. Open API/SDK (C++, .Net, Java) for tailored interface development.
- Ideal for bank counters & service desks
Software included
DeepSign is bundled with this signature pad.
Open and sign Word, Excel, PDF, and image documents on the connected device, with secure digital delivery and optional fingerprint verification on supported models.
Technical data
Key specifications
Model YHN 102
| Item | Parameter | |
|---|---|---|
| LCD Display | Screen Size | 10.1 inch |
| Native Resolution | 1280 x 800 (16:10) | |
| Display Type | IPS LCD | |
| Active Area Size | 135.6 x 216.96 mm | |
| Contrast Ratio | 800 : 1 | |
| Brightness | 250 cd/m2 | |
| Response Time | 14 ms | |
| Viewing Angle | 170°(H)/170°(V) (Typ.)(CR＞10) | |
| Display Color | 16.7M (8bit) | |
| Fingerprint （Optional） | Sensor | Capacitive |
| Image Size | 192×192 pixels （or FBI Standard） | |
| Pad and Pen | Reading Technology | Battery-free Electromagnetic Resonance |
| Coordinate Resolution | 5080 LPI | |
| Pressure Levels | 8192 | |
| Coordinate Accuracy | ±0.5mm(Center), ±2mm(Corner) | |
| Sensing Height | 10 mm | |
| Report Rate | 233 points per second | |
| General | Power Supply | USB 5V 1A |
| Communication Interface | USB TYPE-C | |
| Button | 4 Buttons, Optional | |
| Net Weight | 722 g | |
| Main Body Color | Black | |
| Dimension | 280*170*15mm | |
