YHN 053

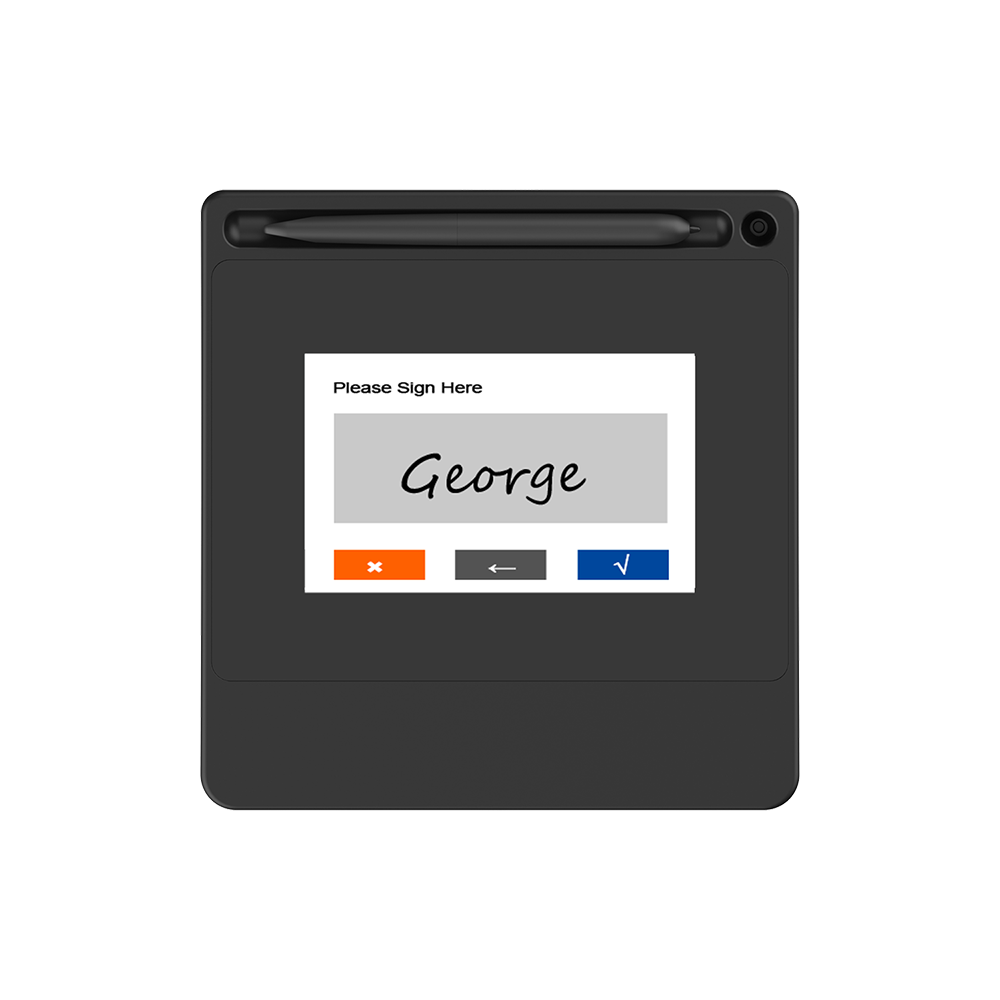

5-inch Signature pad
- 5.0″ color display, 800×480 resolution
- Passive electromagnetic pen technology
- 2048 levels of pressure sensitivity
- Full Customization： Available in bespoke corporate colors and branding. Open API/SDK (C++, .Net, Java) for tailored interface development.
Software included
DeepSign is bundled with this signature pad.
Open and sign Word, Excel, PDF, and image documents on the connected device, with secure digital delivery and optional fingerprint verification on supported models.
Technical data
Key specifications
Model YHN 053
| Item | Parameter | |
|---|---|---|
| LCD Display | Screen Size | 5 inch |
| Native Resolution | 800*480 (16:9) | |
| Display Type | TFT LCD | |
| Active Area Size | 108.0 x 64.8 mm | |
| Contrast Ratio | 800 : 1 | |
| Brightness | 250 cd/m2 | |
| Response Time | 16 ms | |
| Viewing Angle | 70°/70°(H)/60°/60°(V) (Typical)(CR≥10) | |
| Pad and Pen | Reading Technology | Battery-free Electromagnetic Resonance |
| Coordinate Resolution | 2540 LPI | |
| Pressure Levels | 2048 | |
| Coordinate Accuracy | ±0.5mm（Center）, ±3mm（Corner） | |
| Sensing Height | 10 mm | |
| Report Rate | 233 points per second | |
| General | Encryption | AES/RSA （Optional） |
| Power Supply | USB 5V 1A | |
| Communication Interface | USB （USB cable locking system，2 Meter） | |
| Dimension | 174 × 168 × 18mm | |
| Net Weight | 270g | |
| Main Body Color | Black | |
| OS Supported | Windows 7 or later， Android | |
