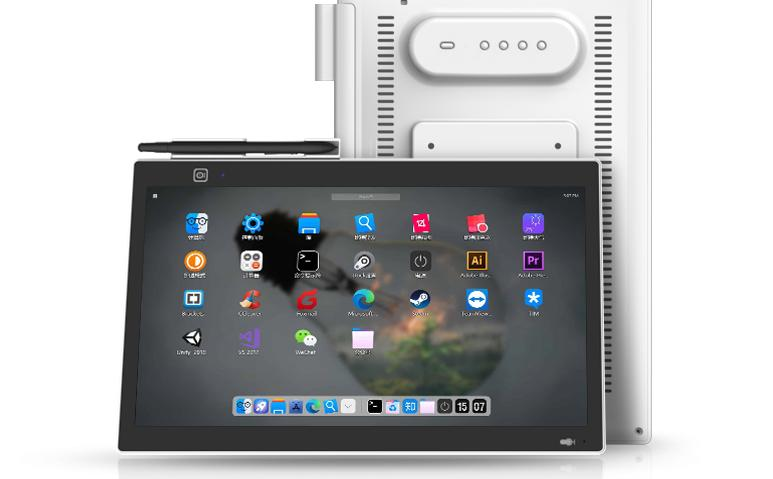

YF 156K
15.6-inch Signature pad
- 15.6" large display, 1920x1080 Full HD
- Optional 5MP camera for face recognition
- Optional voice recording & push
- 8192 levels of pressure sensitivity
- 10-point capacitive touch
- Muti-angle adjustable stand
- Counter display & service applications
Technical data
Key specifications
Model YF 156K
| Item | Parameter | |
|---|---|---|
| LCD Display | Screen Size | 15.6 inch |
| Native Resolution | 1920 x 1080 (16:9) | |
| Display Type | IPS LCD | |
| Active Area Size | 344.2 x 193.6 mm | |
| Contrast Ratio | 1000 : 1 | |
| Brightness | 250 cd/m2 | |
| Pad and Pen | Reading Technology | Battery-free Electromagnetic Resonance |
| Coordinate Resolution | 5080 LPI | |
| Pressure Levels | 8192 | |
| Reading Height | 10 mm | |
| Touch Input | Capacitive | 10 point finger touch |
| Camera (Optional) | 5 million pixels | Face recognition, photo/video |
| Voice | Voice recording/ push | Optional |
| General | Power Supply | 100-240V AC, 50/60Hz |
| Interface | HDMI IN*1 | |
| Button | Power switch | |
| Net Weight | 1.64KG | |
| Main Body Color | Black/White | |
| Dimension | 373 x 245 x 32 mm | |
| OS Support | Windows 7+, macOS 10.11+ | |
| Power Consumption | 12W typical, 15W max | |
| Standby Consumption | ≤0.5W | |
