YF 2201

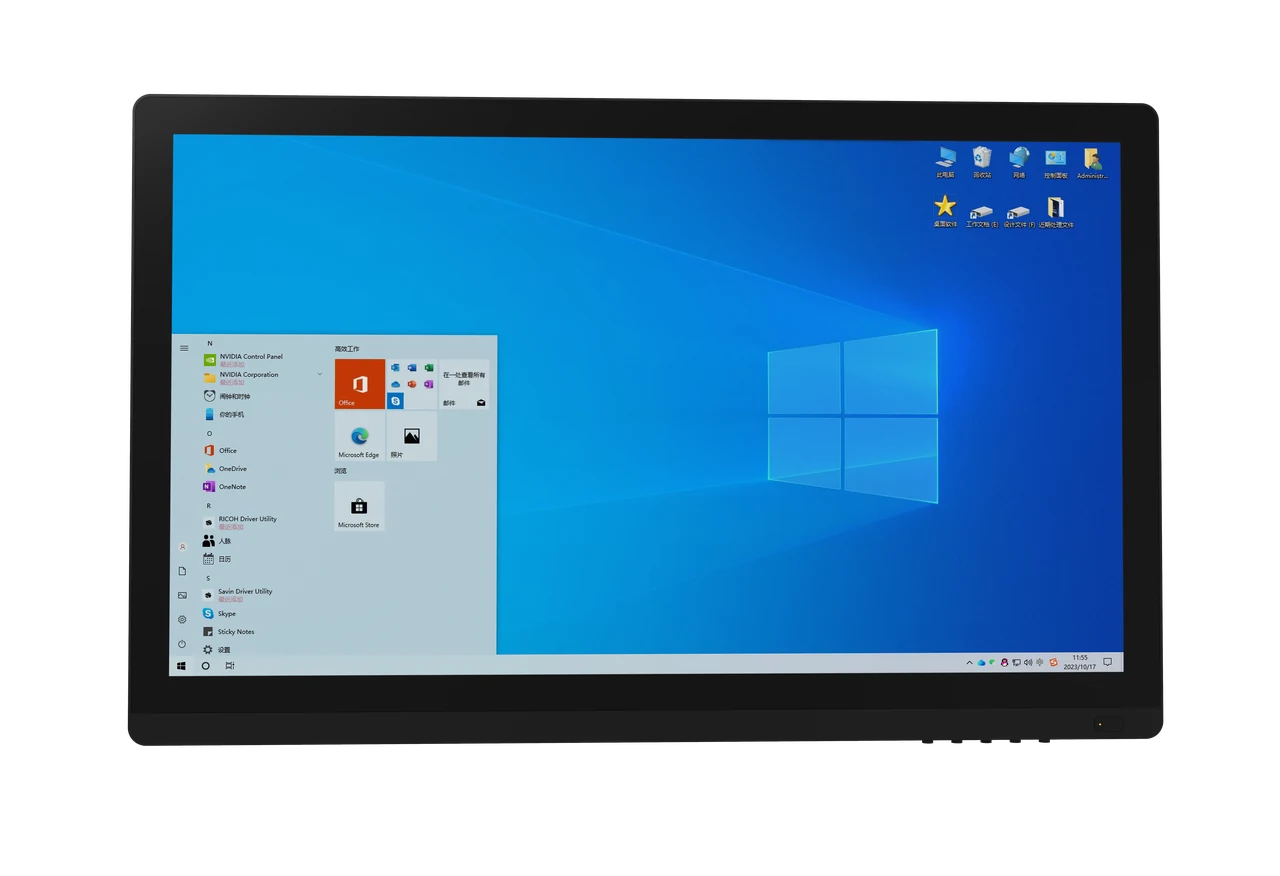

21.5-inch Signature pad
- 21.5" pen display, 1920x1080 Full HD
- 72% NTSC color gamut
- 10-point capacitive touch
- HDMI / DP / VGA multi-interface
- Conference, education & design
- Muti-angle adjustable stand
- Windows & macOS compatible
Technical data
Key specifications
Model YF 2201
| Item | Parameter | |
|---|---|---|
| LCD Display | Screen Size | 21.5 inch |
| Native Resolution | 1920 x 1080 (16:9) | |
| Display Type | IPS LCD | |
| Active Area Size | 527.04 x 296.46 mm | |
| Contrast Ratio | 1000 : 1 | |
| Brightness | 250 cd/m2 | |
| Response Time | 14 ms | |
| Display Color | 16.7M(8bits) | |
| Pad and Pen | Reading Technology | Battery-free Electromagnetic Resonance |
| Coordinate Resolution | 5080 LPI | |
| Pressure Levels | 8192 | |
| Reading Height | 10 mm | |
| Report Rate | 233 points per second | |
| Touch Input | Capacitive | 10 point finger touch |
| General | Power Supply | 100-240V AC, 50/60Hz |
| Video Input | HDMI, DP, VGA | |
| Button | Power switch x1, Touch switch x1 | |
| Net Weight | 6.4 KG | |
| Main Body Color | Black | |
| Dimension | 594.7 x 363 x 43.5 mm (without stand) | |
| OS Support | Windows 7+, macOS 10.11+ | |
| Power Consumption | 36W | |
| Standby Consumption | ≤0.5W | |
