YFB 102-G

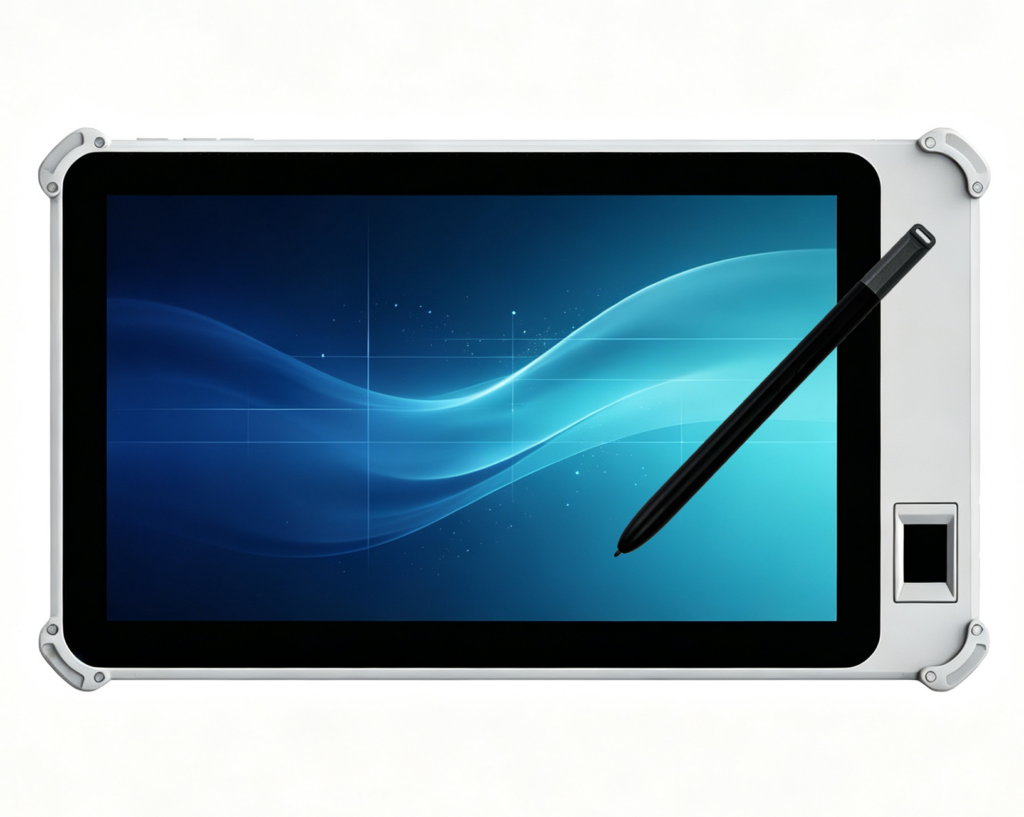

10-inch mobile Signature pad with fingerprint scanner
- 10.1" Android 12 / Android 14 tablet with signature pad
- 10000mAh battery, 10 hours cotinuous working
- Fast charging support
- Portable for outdoor/mobile signing
Technical data
Key specifications
Model YFB 102-G
| Item | Parameter | |
|---|---|---|
| LCD Display | CPU | Octa-core, 2.0GHz, Android 12 / Android 14 |
| DDR+EMMC | 4GB+128GB | |
| Screen Size | 10.1 inch | |
| Native Resolution | 1280 x 800 | |
| Display Type | IPS LCD | |
| Contrast Ratio | 800 : 1 | |
| Brightness | 250 cd/m2 | |
| Display Color | 16.7M(8bits) | |
| Capacitive touch | Touch screen technology | 10 points, G+G |
| Surface hardness | 7H | |
| Click life | 1 million times | |
| Pad and Pen | Reading Technology | Battery-free Electromagnetic Resonance |
| Coordinate Resolution | 5080 LPI | |
| Pressure Levels | 8192 | |
| Report Rate | 233 points per second | |
| General | Power Supply | DC 9V 2A |
| Function | WiFi, Bluetooth, Camera, Fingerprint optional | |
| Battery | 10000mAh | |
| Waterproof | IP65 – Waterproof and alcohol-resistant | |
| Fast Charging | Supported | |
| Battery Life | 10 hours | |
| Main Body Color | White | |
| Dimension | 285*175*14 mm | |
